mitutoyo digital indicator id c 12 7mm 0 001mm flat back 543 390b

Pre-order

SKU: MIT-543-390B

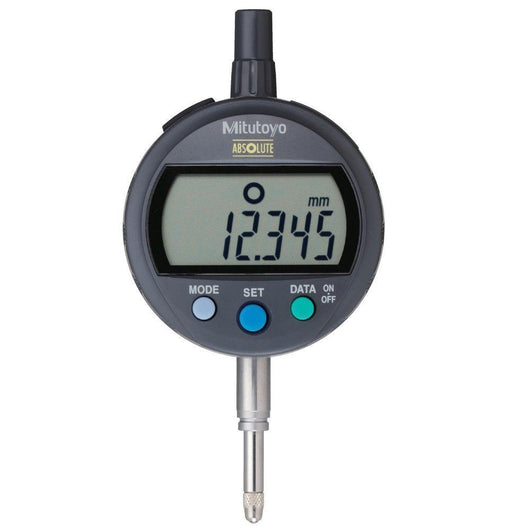

Mitutoyo Digital Indicator ID-C 12.7mm 0.001mm Flat Back 543-390B

Name: Mitutoyo Digital Indicator ID-C 12.7mm 0.001mm Flat Back 543-390B
Brand: Mitutoyo
SKU: MIT-543-390B
Price: 314.16 GBP
Availability: InStock

Was: £346.00

£314.16 EX VAT

£376.99 INC VAT

Available for Pre-Order (Dispatched in Approximately 3-5 Working Days)

Description
Specs & Data Sheets
Shipping & Delivery Information
Warranty Information

Description

The ABSOLUTE sensor means you donâ€˜t have to carry out origin setting every time you power it on, saving you time and hassle.
GO/Â±NG judgement is performed by setting the upper and lower tolerances.
You can make simple calculations by a user-definable factor using the formula Ax (â€šxâ€˜ is spindle displacement).
Large character height of 11mm provides good readability.
Display 330Â° rotatable.
A function lock protects the display against unauthorised use.

Mitutoyo 543-390B IDC Digimatic Indicator has a Resolution of 0.001mm/0.01mm, measuring range of 12.7mm, and Stem diameter of 8mm. This model has a flat back and is equipped with Output. The Face rotation is 330 degrees

Key Specifications

No. Lug back plate: 543-390

Range: 12.7 mm

Digital step: 0.001 mm

Max. Permissible Error E MPE: 0.003 mm

H MPE (Hysteresis): 0.002 mm

R MPE (Repeatability): 0.002 mm

Type: EN ISO Standard

Measuring force: ≤ 1.5 N

Protection: IP42

Mass_ 170 g

Display: LCD, character height 11 mm rotatable 330°

Alarm: Low voltage, counting value composition error, overflow error, tolerance limit setting error

Stem Ø: 8 mm

Contact point: Carbide ball, thread M 2.5 x 0.45 mm

Battery life: approx. 7000 hours

Power supply: 1 battery SR-44

DATA/HOLD: Yes

Data output: Yes

ON/OFF: Yes

ZERO/ABS: Yes

PRESET: Yes

Selectable resolution: Yes

GO/±NG judgement: Yes

Calculation function (with formula): Yes

Counting direction switchable: Yes

Digital/Analog_ Digital

Inch-Metric: Metric

Max. response speed: Unlimited

Delivered: Including 1 battery

Brand Information

Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments

Specs & Data Sheets

Product Specifications

Specification	Details
Barcode (ISBN, UPC, GTIN, etc.)	5056202816371
Discontinued since	22/11/2022
Replacement sku	ProductDrop
