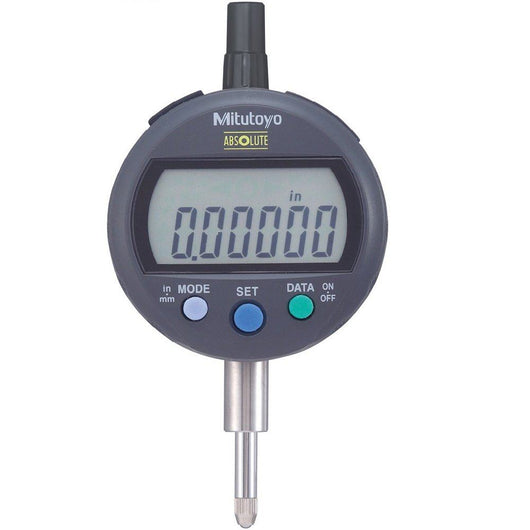

Mitutoyo 543-392B IDC Absolute Digimatic Indicator has a Flat Back, 3/8" Stem diameter and 0.5"/12.7mm Measuring Range with a .00005"/0.001mm Resolution and a Measuring Force of 1.5N or Less. The face can be rotated 330 degrees to allow for easy reading and includes SPC data output with IP42 Rated Protection. This is a standard, compact type with a large, easy-to-read, LCD Screen. The GO/+-NG judgement can be performed by setting upper and lower tolerance limits. The judgement result can be displayed in full-size characteristics. The positive/negative count resulting from the spindle's up/down movement can be toggled. Due to the Absolute linear encoder technology, the spindle always displays the absolute position from the origin at power-on. Over-speed errors are eliminated because of the unlimited response speed.
No. Lug back plate: 543-392
Range: 0.5"/12.7 mm
Digital step: 0,00005"/0,001 mm
Max. Permissible Error E MPE: 0.0001"/0.003 mm
H MPE (Hysteresis): 0,0001"/0.002 mm
R MPE (Repeatability): 0,0001"/0.002 mm
Type: ASME/ANSI/AGD Standard
Measuring force: ≤ 1.5 N
Protection: IP42
Mass_ 170 g
Display: LCD, character height 11 mm rotatable 330°
Alarm: Low voltage, counting value composition error, overflow error, tolerance limit setting error
Stem Ø: 9,52 mm
Contact point: Carbide ball, thread # 4-48 UNF
Battery life: approx. 7000 hours
Power supply: 1 battery SR-44
DATA/HOLD: Yes
Data output: Yes
ON/OFF: Yes
ZERO/ABS: Yes
PRESET: Yes
Selectable resolution: Yes
GO/±NG judgement: Yes
Calculation function (with formula): Yes
Counting direction switchable: Yes
Digital/Analog_ Digital
Inch-Metric: Inch/Metric
Max. response speed: Unlimited
Delivered: Including 1 battery
Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments
| Specification | Details |
|---|---|
| Barcode (ISBN, UPC, GTIN, etc.) | 5056202816388 |
| Discontinued since | 14/02/2023 |
| Replacement sku | ProductDrop |
