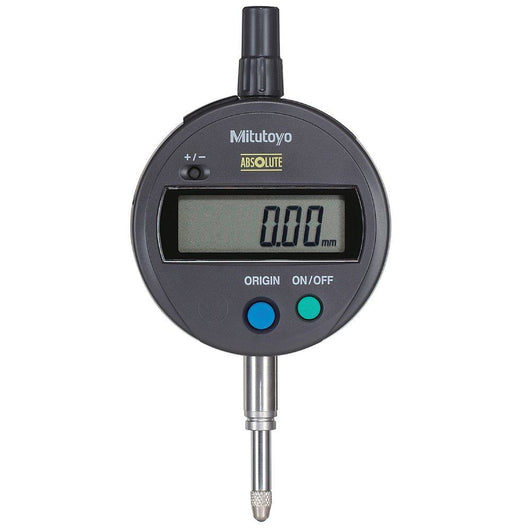

The Mitutoyo absolute Digimatic indicator has a range of 0.5in or 12.7mm. Unlike the conventional Digimatic indicators that simply display a spindle displacement, this calculation-type Digimatic indicator incorporates an internal calculation function in place of spindle displacement. This indicator comes with fixtures that facilitate easy measurements of a feeler, inside diameter and radius of curvature measurement without the hassle of conversion tables of equivalents. It always determines the spindle's absolute position from the origin at power ON by employing an absolute linear encoder. Its unlimited response speed helps to eliminate over-speed errors.
No. Lug back plate: 543-781
Range: 12.7 mm
Digital step: 0.01 mm
Max. Permissible Error E MPE: 0.02 mm
H MPE (Hysteresis): 0.02 mm
R MPE (Repeatability): 0.01 mm
Type: EN ISO Standard
Measuring force: ‰¤ 1.5 N
Protection: IP42
Mass_ 140 g
Mass lug/plain: 140/150 g
Display: LCD, character height 9 mm
Max. response speed: Unlimited
Alarm: Low voltage, counting value composition error
Stem ˜: 8 mm
Contact point: Carbide ball, thread M 2.5 x 0.45 mm
Battery life: approx. 18000 hours (0.001 mm type),
approx. 20000 hours (0.01 mm type)
Power supply: 1 battery SR-44
Data output: Yes
ON/OFF: Yes
ORIGIN (ABS-Zero): Yes
Counting direction switchable: Yes
Digital/Analog_ Digital
Inch-Metric: Metric
Delivered: Including 1 battery
Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments
| Specification | Details |
|---|---|
| Barcode (ISBN, UPC, GTIN, etc.) | 5056202816227 |
| Discontinued since | 22/03/2023 |
| Replacement sku | ProductDrop |
