- Measuring the root tangent length of spur and helical gears.
- You can measure recessed features that are difficult to reach with a standard micrometer.

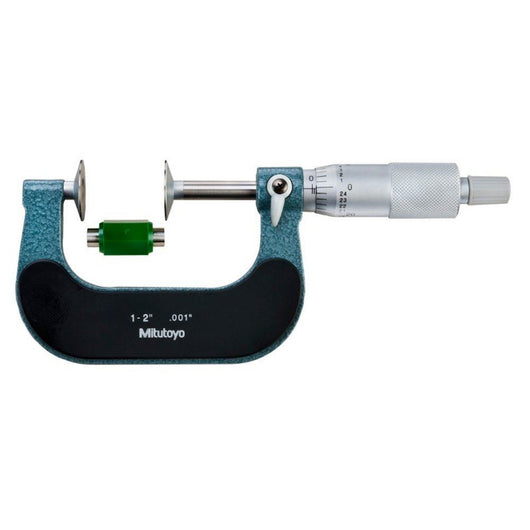

This Disc Micrometer enables you to measure hard-to-reach features, offering you the following benefits:
Measuring the root tangent length of spur and helical gears.
You can measure recessed features that are difficult to reach with a standard micrometer.
Key Specifications
Range: 1 - 2 Inch
Parallelism: 0,00016"
Maximum Permissible Error J MPE: ±0,0002"
Measuring force: 5 - 10 N
Measurable module: 0.5 - 6
Mass_ 200 g
Measuring face: Carbide-tipped (123-113, -114, -115, -116) or hardened steel spindle and anvil
Measuring spindle: With spindle lock, ¸6,35 mm, spindle pitch 0,5 mm
Scale: Thimble and sleeve satin chrome finish, ¸18 mm
Digital/Analog_ Analog
Inch-Metric: Inch
Graduation: 0,001"
Measuring spindle: With spindle lock, ¸6,35 mm, spindle pitch 0,635 mm
Delivered: Including box, setting standard (from 25 mm upward), key
