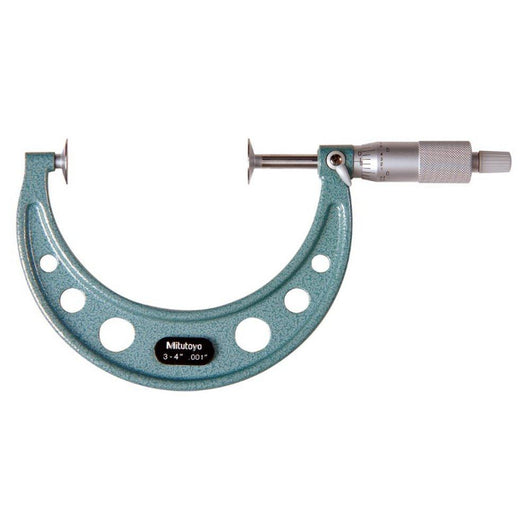

This Disc Micrometer enables you to measure hard-to-reach features, offering you the following benefits:
Measuring the root tangent length of spur and helical gears.
You can measure recessed features that are difficult to reach with a standard micrometer.
Range: 3 - 4 Inch
Parallelism: 0,00024"
Maximum Permissible Error J MPE: ±0,0003"
Measuring force: 5 - 10 N
Measurable module: 0.5 - 6
Mass_ 250 g
Measuring face: Carbide-tipped (123-113, -114, -115, -116) or hardened steel spindle and anvil

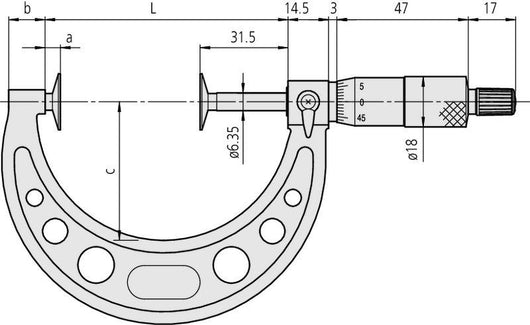

Measuring spindle: With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Digital/Analog_ Analog
Inch-Metric: Inch
Graduation: 0,001"
Measuring spindle: With spindle lock, ø6,35 mm, spindle pitch 0,635 mm
Delivered: Including box, setting standard (from 25 mm upward), key
| Specification | Details |
|---|---|
| Barcode (ISBN, UPC, GTIN, etc.) | 5055396175127 |
| Accuracy | +/-0.0003" |
| Anvil face profile | Central Recess |
| Data output | No |
| Digital analogue | Analogue |
| Measurement range | 3-4" |
| Measurement units | Imperial |
| Mpn | 123-128 |
| Product series | Series 123 - Disc Micrometer |
| Product sub type | Disc/Gear Tooth |
| Resolution | 0.001" |
| Spindle face profile | Central Recess |
| Waterproof | No |
