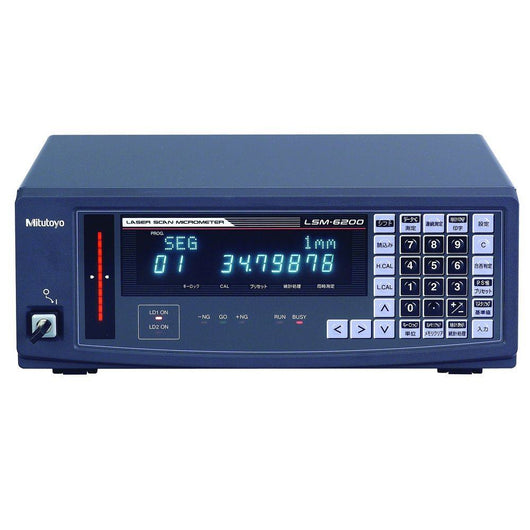

Mitutoyo Laser Scan Micrometer LSM-6200 Laser Display (Metric/Inch) 544-072E

Product Summary

The Mitutoyo LSM-6200 Laser Display unit features a dual-display design that allows simultaneous monitoring of setup values and two measurement readings. It supports versatile segment and edge measurement options with advanced statistical and data processing functions, ideal for precise and efficient measurement workflows.

Key Specifications

• Applicable laser standards: IEC, FDA (544-534), JIS (544-533)
• Main display: 16-digit fluorescent tube
• Interfaces: RS-232C, Analog I/O, Foot Switch
• Power supply: 100-240V AC, 40 VA, 50/60 Hz
• GO/±NG judgement: Yes
• OFFSET function: Yes
• Sample measurement capability: Yes
• Statistical calculations (for DP-1VA): Yes
• Data output: Yes
• ZERO SET function: Yes
• PRESET function: Yes
• Group judgement: Yes
• Workpiece position display: Yes
• Transparent object measurement: Yes
• Automatic measurement: Yes
• Abnormal data elimination: Yes
• Units: Inch/Metric selectable

What's Included

• Laser display unit
• Instruction manual
• Power cable
• Interface cables

Product Benefits

• Dual-Display Design: Continuously monitor setup values and two measurements simultaneously
• Flexible Measurement Modes: Supports segment measurement (up to 7 segments) and edge measurement (1 to 255 edges)
• Comprehensive Interfaces: RS-232C, analogue I/O, and foot switch for versatile connectivity
• Advanced Data Functions: Statistical calculations, abnormal data elimination and GO/±NG judgement enhance measurement reliability
• Wide Compatibility: Works with both inch and metric units for global applications
• Trusted Mitutoyo Quality: Part of a long legacy of precision measurement solutions
