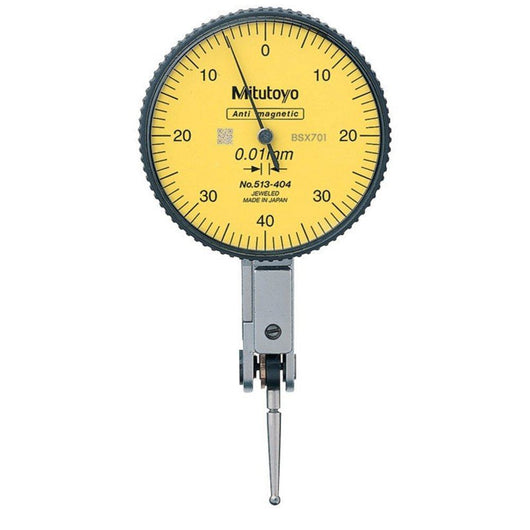

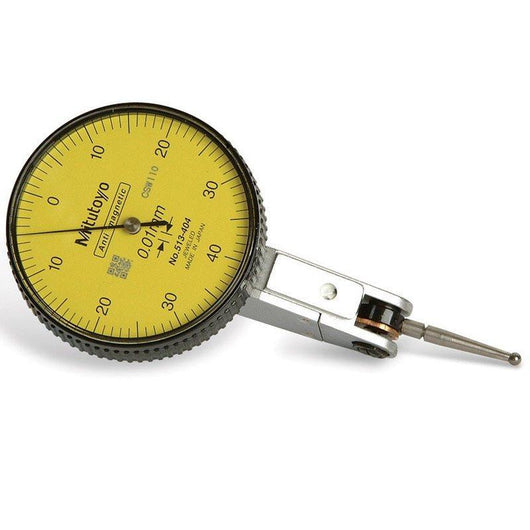

Mitutoyo Lever Indicator 0.8mm

This product is now discontinued, please contact us for possible alternatives.

• Provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators
• No-clutch mechanism for automatic reversal of measuring direction
• Resistant to water and dust thanks to the one-piece bezel and O-ring seal for the crystal
• The glare-free flat crystal face has a scratch-resistant coating
• High-sensitivity and quick response due to low-friction jewelled bearings
• A versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications
• This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation
• Dial Type - Balanced
• Range - 0.8mm
• Accuracy - ±.8µm, Resolution - 0.01mm

Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments

This product has been superseded by MIT-513-404-10E.

Key Specifications

Repeatability - ±.5µm

Graduation - 0-40-0
