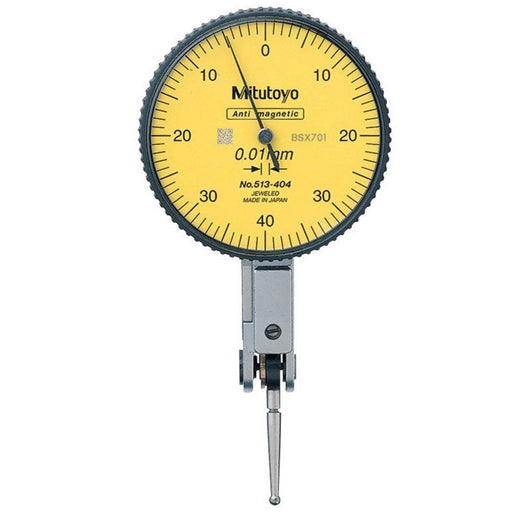

The Mitutoyo Anti-Magnetic Lever Indicator is a versatile tool designed for precise measurements, particularly in alignment operations on machine tools. With a balanced dial type and 0.8mm range, it is perfect for applications requiring high sensitivity and quick response.
Key Features:
-
Access to Shrouded Surfaces: Provides easy access to areas that are difficult to reach with conventional dial indicators.
-
Automatic Reversal: No-clutch mechanism allows for automatic reversal of measuring direction upon contact.
-
Water and Dust Resistance: One-piece bezel and O-ring seal prevent water and dust from entering, ensuring durability.
-
Scratch-Resistant Coating: The glare-free flat crystal face is coated for scratch resistance, maintaining clarity and precision.
-
High-Sensitivity Bearings: Low-friction jewelled bearings provide quick response and smooth operation.
-
Anti-Magnetic: Ideal for use in environments where magnetic interference is a concern.
-
Versatile Application: Perfect for alignment operations on machine tools and other precision tasks.
-
Automatic Adaption: Automatically adapts to the required measuring direction upon contact, ensuring accuracy in all operations.
-

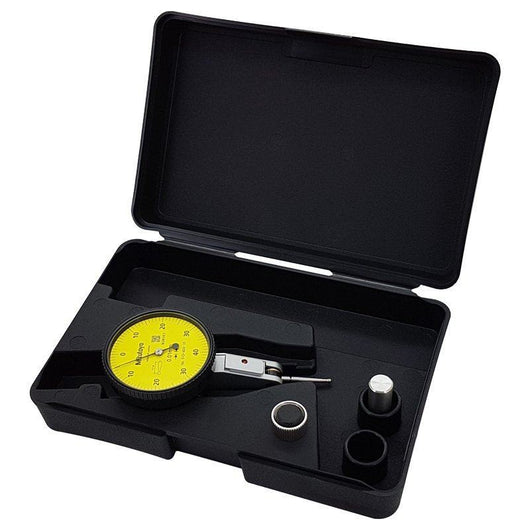

Storage Case: Comes with a convenient storage case for safe keeping.
Specifications:
-
Dial Type: Balanced
-
Range: 0.8mm
-
Accuracy: ±0.008µm
-
Resolution: 0.01mm
-
Repeatability: ±0.5µm
-
Scale: 0-40-0
Brand Information: Mitutoyo
Mitutoyo, with over 80 years in the metrology industry, is a world-leading manufacturer of high-precision measuring tools. Founded in 1934 in Japan, Mitutoyo is known for its micrometers, calipers, coordinate measuring instruments, and optical measuring systems.
