In Stock

SKU: MIT-103-138

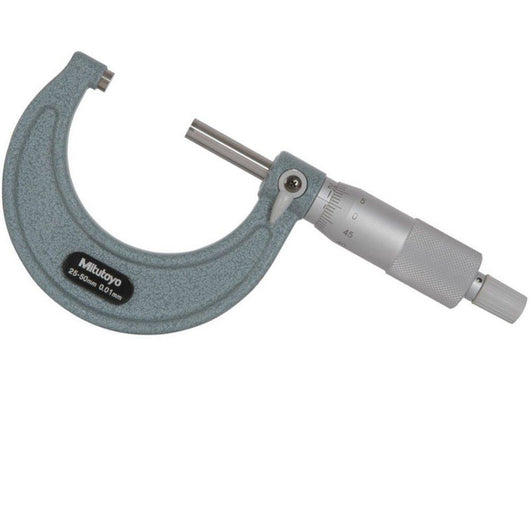

Mitutoyo Micrometer 25-50mm 103-138

Name: Mitutoyo Micrometer 25-50mm 103-138
Brand: Mitutoyo
SKU: MIT-103-138
Price: 55.00 GBP
Availability: InStock

Was: £76.40

£55.00 EX VAT

£66.00 INC VAT

Range	25-50mm
Resolution	0.01mm
Measurement Units	Metric
Data Output	No
Spindle Face Profile	Flat
Parallelism	0.002mm

Order in the next [totalHours] hrs %M mins and receive it between and (UK Addresses)

Description
Product Specifications
Shipping & Delivery Information
Warranty Information

Description

A popular non-digital micrometer with a ratchet stop to guarantee repeatable measurement.
Hammertone-green, baked-enamel finished frame with carbide measuring faces
Ratchet Stop for excellent repeatability.
Range - 25-50mm
Graduation - 0.01mm
Accuracy - ‚±2‚µm
Flatness - 0.6‚µm, Parallelism - 2‚µm

Economy type with carbide tipped anvils. Enamel Framed

Key Specifications

Range: 25 - 50 mm

Maximum Permissible Error J MPE: ±2 µm

Measuring force: 5 - 10 N

Mass_ 215 g

Parallelism: (2+L/100) μm, L = max. range (mm)

Measuring face: Carbide-tipped, micro-lap finish

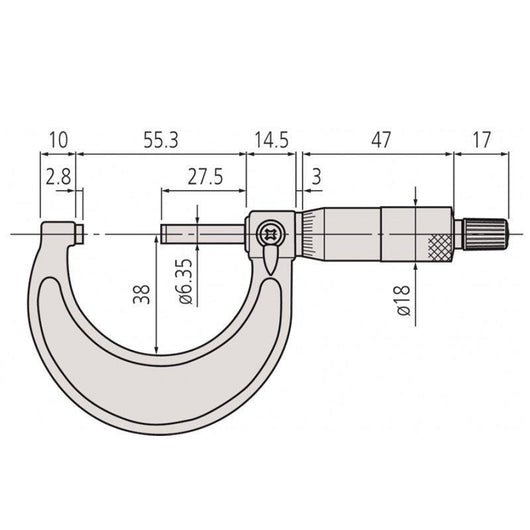

Measuring spindle: With spindle lock, ¸6,35 mm (‰¤300 mm) ¸ 8 mm (>300 mm) , spindle pitch 0,5 mm

Scale: Thimble and sleeve satin chrome finish, ¸18 mm

Digital/Analog_ Analog

Inch-Metric: Metric

Graduation: 0,01 mm

Measuring spindle: With spindle lock, ¸6,35 mm , spindle pitch 0,5 mm

Delivered: Including box, setting standard (from 25 mm upward), key, certificate of inspection (0-50 mm range)

Brand Information

Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments

Product Specifications

Specification	Details
Barcode (ISBN, UPC, GTIN, etc.)	5055396122794
Accuracy	+/-0.002mm
Anvil face profile	Flat
Data output	No
Digital analogue	Analogue
Measurement range	25-50mm
Measurement units	Metric
Mpn	103-138
Parallelism	0.002mm
Product series	Series 103 - Economy Micrometer
Product sub type	External
Resolution	0.01mm
Spindle face profile	Flat
Waterproof	No
