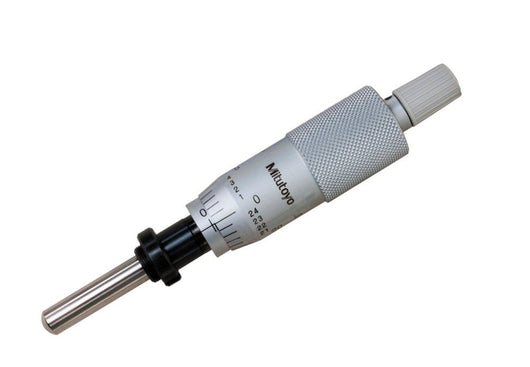

Mitutoyo Micrometer Head 150-207 Medium-sized Standard 0-1" Clamp Nut
Range | 0-1" |
---|---|
Resolution | 0.001" |
Measurement Units | Imperial |
Data Output | No |
Stem Type | Locknut |
Stem Diameter | 6.35mm |
Spindle Face Profile | Flat |
Range | 0-1" |
---|---|
Resolution | 0.001" |
Measurement Units | Imperial |
Data Output | No |
Stem Type | Locknut |
Stem Diameter | 6.35mm |
Spindle Face Profile | Flat |
A Mitutoyo 150-207 medium sized, standard, high resolution, non-digital Mitutoyo micrometer head with plain stem and flat tungsten-carbide spindle tip
Â
Graduation: 0.001"
Range: 0 - 1 [Inch]
Maximum Permissible Error J MPE: ±0.0001"
Spindle end: Flat
Spindle pitch: 0.5 mm
Stem: w/ clamp nut
Stem ˜: 0.375"
Fixture thickness 11.5 mm
for clamp nut:Â
Mass_ 100 g
Measuring face: Carbide-tipped
Inch-Metric: Inch
Graduation: 0.001"
Digital/Analog_ Analog
Specification | Details |
---|---|
Barcode (ISBN, UPC, GTIN, etc.) | 5055396171129 |
Accuracy | +/-0.0001" |
Data output | No |
Digital analogue | Analogue |
Measurement range | 0-1" |
Measurement units | Imperial |
Mpn | 150-207 |

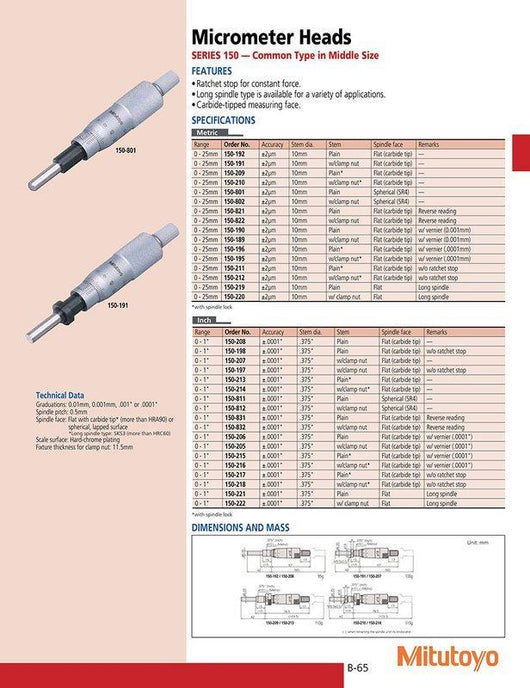

Product series | Series 150 - Carbide-Tipped Spindle Medium Standard Micrometer Head |
Resolution | 0.001" |
Spindle face profile | Flat |
Stem diameter | 6.35mm |
Stem type | Locknut |
Waterproof | No |
