| Range | 148-220-10 |
|---|---|
| Resolution | 0.01mm |
| Measurement Units | Metric |
| Data Output | No |

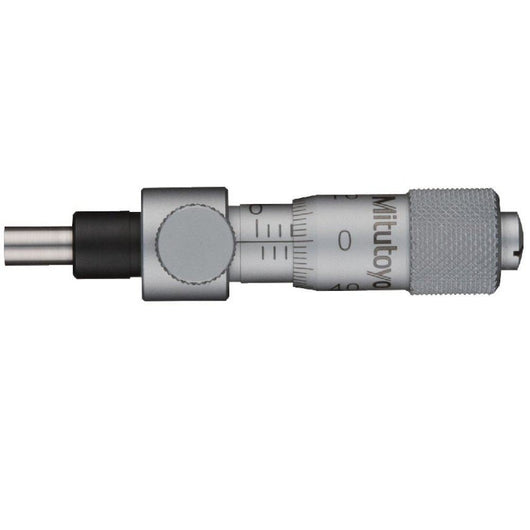

These micrometer heads feature a knurled locking screw so you can lock the spindle in any position with the knurled locking screw
Range: 0 - 6.5 mm
Maximum Permissible Error J MPE: ±5 µm
Spindle end: Flat
Spindle pitch: 0.5 mm
Stem: Plain
Stem ˜: 6 mm
Mass_ 16 g
Measuring face: Hardened steel (>60 HRC)
Digital/Analog_ Analog
Inch-Metric: Metric
Graduation: 0.01 mm
Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments
| Specification | Details |
|---|---|
| Barcode (ISBN, UPC, GTIN, etc.) | 5055396170955 |
| Data output | No |
| Digital analogue | Analogue |
| Discontinued since | 05/08/2022 |
| Measurement range | 148-220-10 |
| Measurement units | Metric |
| Mpn | 148-220 |
| Product series | Series 148 - Locking Screw Micrometer Head |
| Replacement sku | ProductDrop |
| Resolution | 0.01mm |
