mitutoyo mit 192 632 10 digital scribing height gauge series 192 600mm 24 inch

Pre-order

SKU: MIT-192-632-10

Mitutoyo MIT-192-632-10 Digital Scribing Height Gauge Series 192 600mm (24 inch)

Name: Mitutoyo MIT-192-632-10 DigitalScribing Height GaugeSeries 192 600mm (24 inch)
Brand: Mitutoyo
SKU: MIT-192-632-10
Price: 1102.50 GBP
Availability: InStock

Was: £1,470.00

£1,102.50 EX VAT

£1,323.00 INC VAT

Available for Pre-Order (Dispatched in Approximately 3-5 Working Days)

Description
Specs & Data Sheets
Shipping & Delivery Information
Warranty Information

Description

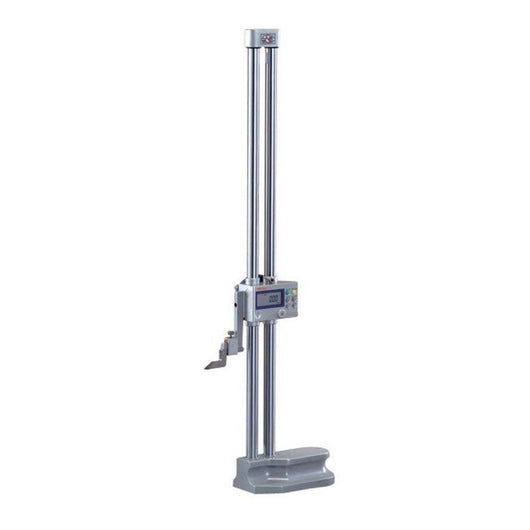

600mm (24 inch) range Series 192 Digital Digital Scribing Height Gauge
0.01/0.005mm (0.0005/0.0002inch) resolution. +/-0.050mm (+/-0.002inch. ) accuracy
Conforms to ISO 13225 2012, JIS B 7517 2018
Conforms to ISO 13225 2012, JIS B 7517 2018
With Double Column Stainless Steel Columns and Ergonomic Cast Iron Base

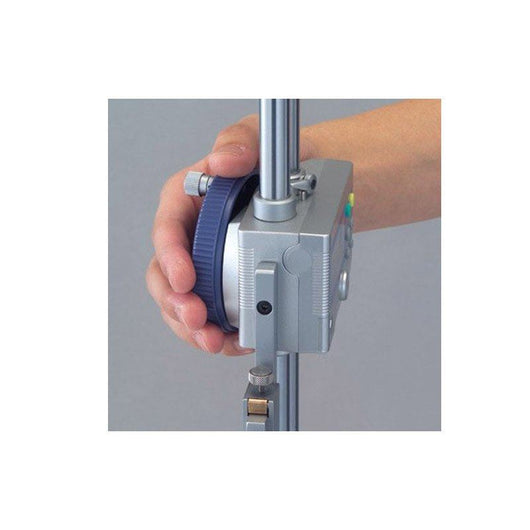

Fine Adjust Hand Wheel to control the slider movement and Locking Lever
Carbide scriber tip

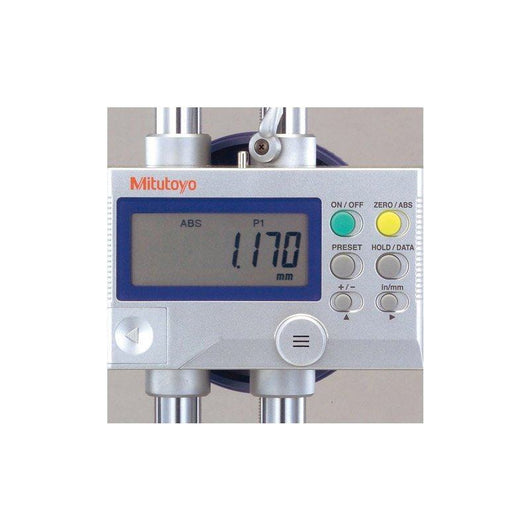

Functions; Inch/Metric Conversion, On/Off, Auto Power Off, Zero Setting, Low Battery Alert
Advanced functions; Preset Value, Cabled Data Output, Hold, Direction of Measurement, ABS/INC

The Series 192 600mm (24 inch) range Digital Scribing Height Gauge offers functions such asInch/Metric Conversion, On/Off, Auto Power Off, Zero Setting, Low Battery Alert. Along with the advanced functions of Preset Value, Cabled Data Output, Hold, Direction of Measurement, ABS/INC. The height gauge has a Double Column Stainless Steel Columns and Ergonomic Cast Iron Base. With a Fine Adjust Hand Wheel to control the slider movement and Locking Lever.

Specs & Data Sheets

Product Specifications

Specification	Details
Barcode (ISBN, UPC, GTIN, etc.)	5055396135091
Accuracy	+/-0.05mm
Base material type	Cast Iron
Battery life	Approx. 3500 hours
Battery type	SR44
Character height	11mm
Data output	Yes
Display type	Digital
Functions	Inch/Metric, On/Off, Zero Reset, Low Battery, ABS/INC, Hold, +/- Seitching
Measurement range	0-600mm (0-24")
Measurement units	Metric/Imperial
Mpn	192-632-10
Product series	Series 192 - Digimatic Double Column Height Gauge
Product sub type	Double Column - Scribing
Resolution	0.01/0.005mm (0.0005/0.0002")
Scribe material type	Carbide
Thumb roller type	Hand Wheel
