mitutoyo mit 192 633 10 digital scribing height gauge series 192 1000mm 40 inch

Pre-order

SKU: MIT-192-633-10

Mitutoyo MIT-192-633-10 Digital Scribing Height Gauge Series 192 1000mm (40 inch)

Name: Mitutoyo MIT-192-633-10 DigitalScribing Height GaugeSeries 192 1000mm (40 inch)
Brand: Mitutoyo
SKU: MIT-192-633-10
Price: 2197.50 GBP
Availability: InStock

Was: £2,930.00

£2,197.50 EX VAT

£2,637.00 INC VAT

Available for Pre-Order (Dispatched in Approximately 3-5 Working Days)

Description
Specs & Data Sheets
Shipping & Delivery Information
Warranty Information

Description

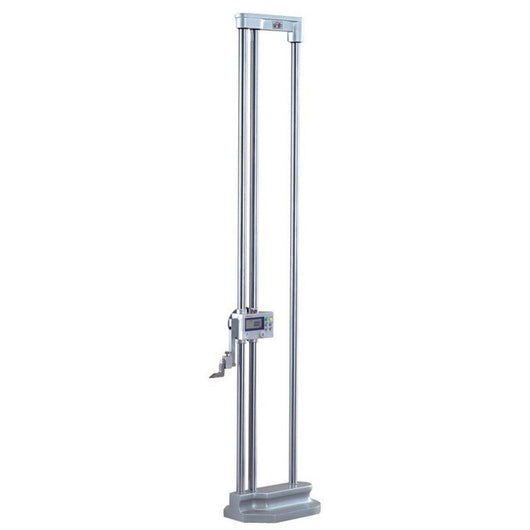

1000mm (40 inch) range Series 192 Digital Digital Scribing Height Gauge
0.01/0.005mm (0.0005/0.0002inch) resolution. +/-0.070mm (+/-0.003inch. ) accuracy
Conforms to ISO 13225 2012, JIS B 7517 2018
Conforms to ISO 13225 2012, JIS B 7517 2018
With Double Column Stainless Steel Columns and Ergonomic Cast Iron Base

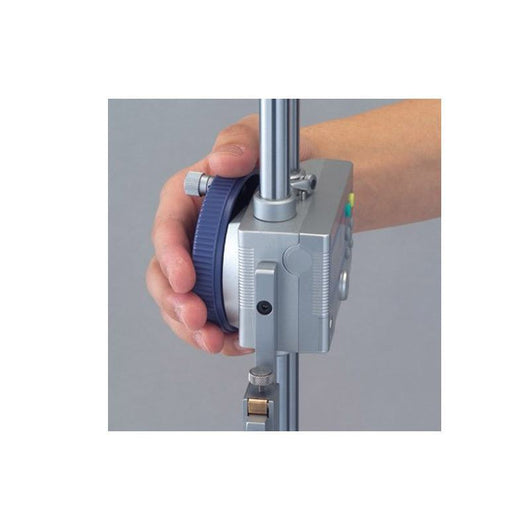

Fine Adjust Hand Wheel to control the slider movement and Locking Lever
Carbide scriber tip

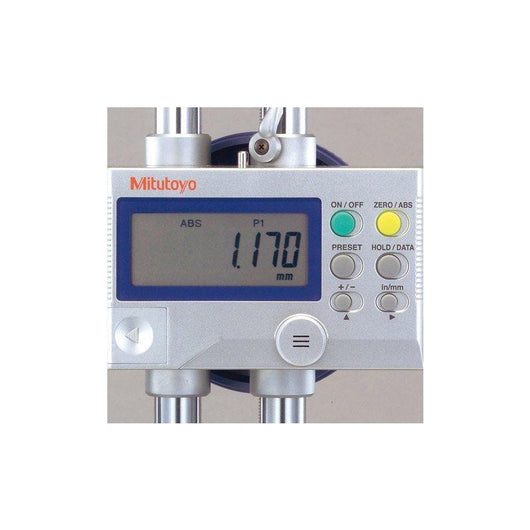

Functions; Inch/Metric Conversion, On/Off, Auto Power Off, Zero Setting, Low Battery Alert
Advanced functions; Preset Value, Cabled Data Output, Hold, Direction of Measurement, ABS/INC

The Series 192 1000mm (40 inch) range Digital Scribing Height Gauge offers functions such asInch/Metric Conversion, On/Off, Auto Power Off, Zero Setting, Low Battery Alert. Along with the advanced functions of Preset Value, Cabled Data Output, Hold, Direction of Measurement, ABS/INC. The height gauge has a Double Column Stainless Steel Columns and Ergonomic Cast Iron Base. With a Fine Adjust Hand Wheel to control the slider movement and Locking Lever.

Specs & Data Sheets

Product Specifications

Specification	Details
Barcode (ISBN, UPC, GTIN, etc.)	5055396135107
Accuracy	+/-0.07mm
Base material type	Cast Iron
Battery life	Approx. 3500 hours
Battery type	SR44
Character height	11mm
Data output	Yes
Display type	Digital
Functions	Inch/Metric, On/Off, Zero Reset, Low Battery, ABS/INC, Hold, +/- Seitching
Measurement range	0-1000mm (0-40")
Measurement units	Metric/Imperial
Mpn	192-633-10
Product series	Series 192 - Digimatic Double Column Height Gauge
Product sub type	Double Column - Scribing
Resolution	0.01/0.005mm (0.0005/0.0002")
Scribe material type	Carbide
Thumb roller type	Hand Wheel
