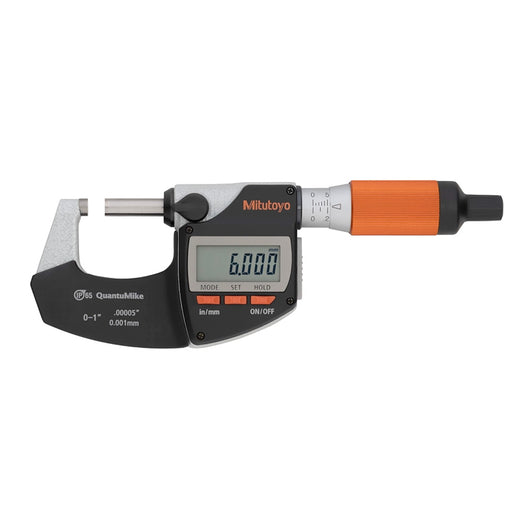

This high-performance digital micrometer offers enhanced measurement efficiency and versatility, combining robust construction with advanced features. The 2mm spindle pitch ensures rapid readings, while metric and imperial markings on the spindle support a broad range of applications.
Key Features:
Fast Measurement: Coarse thread drives the spindle 2mm per thimble rotation for quicker operation.
Dual Scale Spindle: Metric and imperial graduations for flexible use.
PC Connectivity: Supports bidirectional communication via Digimatic S1 interface for easy parameter setup.
Ergonomic Design: Compact, lightweight, and includes a ratchet thimble for simple one-handed or stand-based use.
Calibration & Speed Warnings: Alerts for calibration schedule and approach speed help ensure precision.
GO/±NG Judgement: Upper and lower tolerance limits can be set for instant pass/fail results.
Superior Protection: IP65-rated sealing protects against dust, swarf, and coolant - ideal for workshop environments.
Secure Use: Function lock prevents unauthorised adjustments during operation.
Enhanced Display: Enlarged LCD with 7.5mm character height ensures high visibility.
Performance Specifications:
Accuracy: ±1 µm (conforms to EN ISO 3611 JMPE)
Resolution: 0.001 mm
Flatness: 0.3 µm
Parallelism: 1 µm
Spindle: ˜ 6.35 mm, with spindle lock, 2 mm pitch
Measuring Force: 7-12 N
Display: LCD, character height 7.5 mm
Measuring Face: Carbide-tipped, micro-lap finish
Mass: 265 g
Battery Life: Approx. 2 years (4000 hours) on one CR2032 battery
Advanced Functionalities:
- ON/OFF control
- ABS/INC (including INC ZERO)
- Auto power-off after 20 minutes of inactivity
- Low voltage warning
- HOLD and PRESET modes
- GO/±NG tolerance check
- Built-in calculation function with customisable formula
- Calibration reminder
- Customisable function keys
What's Included:
- Micrometer
- Storage box
- Adjustment spanner
- CR2032 battery
- Certificate of inspection
