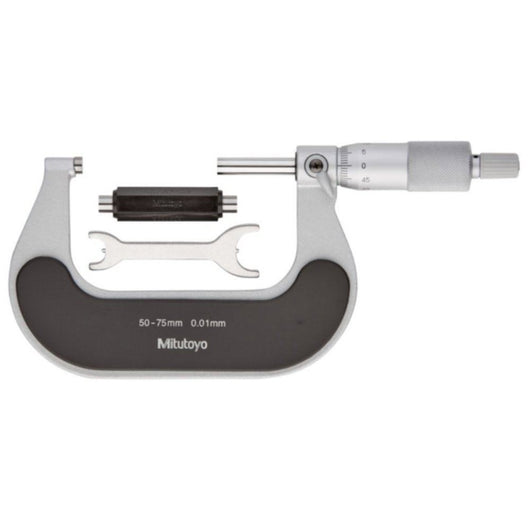

Mitutoyo 50-75mm outside micrometer featuring a cut-away frame for improved access in tight spaces, a ratchet stop for consistent measuring force, and carbide-tipped faces for long-term precision.
Engineered for professional accuracy and consistent performance, this Mitutoyo 50-75mm non-digital micrometer is ideal for measuring larger workpieces - even in hard-to-reach areas. Trusted by engineers and machinists worldwide, it delivers durable, repeatable measurement backed by over 80 years of metrology expertise.
Key Benefits:
Designed for Tight Access
The cut-away frame behind the anvil provides greater clearance, making it easier to take measurements in confined or awkward locations.
Consistent Measuring Force
The integrated ratchet stop applies a constant, controlled measuring force to ensure repeatable and accurate results every time.
Durability You Can Depend On
Features carbide-tipped measuring faces with a micro-lap finish for long-term wear resistance and high measurement reliability.
Precision Handling and Readability
Satin chrome-finished thimble and sleeve reduce glare and improve visibility. The ¸18 mm scale is easy to read, while the spindle lock offers added stability during measurement.
Technical Specifications
- Measurement Range: 50 - 75 mm
- Graduation: 0.01 mm
- Accuracy (J MPE): ±2 µm
- Parallelism: 2 µm
- Measuring Force: 5 - 10 N
- Mass: 375 g
- Measuring Faces: Carbide-tipped, micro-lap finish
- Spindle: ¸6.35 mm, pitch 0.5 mm, with spindle lock
- Scale Finish: Satin chrome (¸18 mm thimble and sleeve)
- Type: Analog (Non-Digital)
- Units: Metric

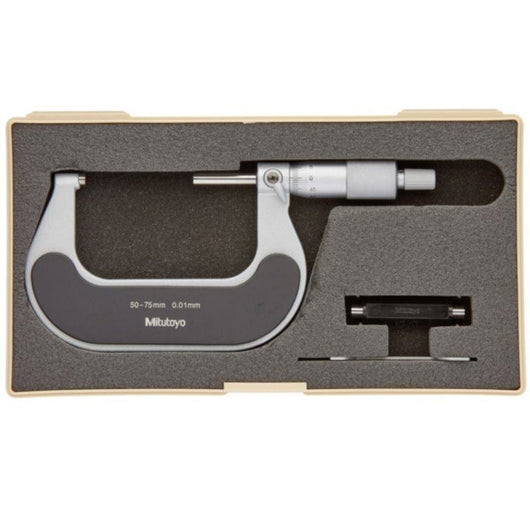

What's Included
- Mitutoyo micrometer
- Protective storage box
- Adjustment spanner/key
- Setting standard (included for sizes from 25 mm and above)
- Certificate of inspection (covers 0-75 mm range)
