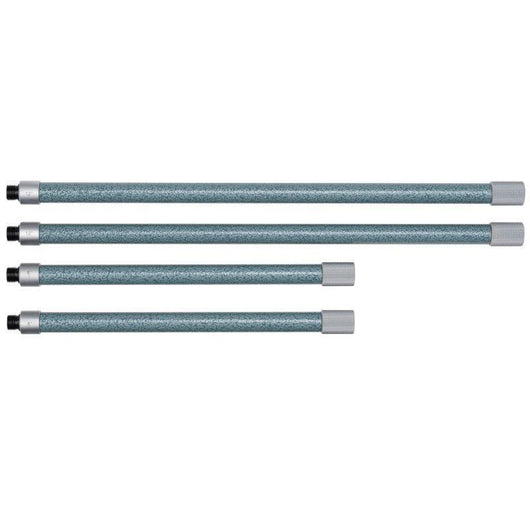

- Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.

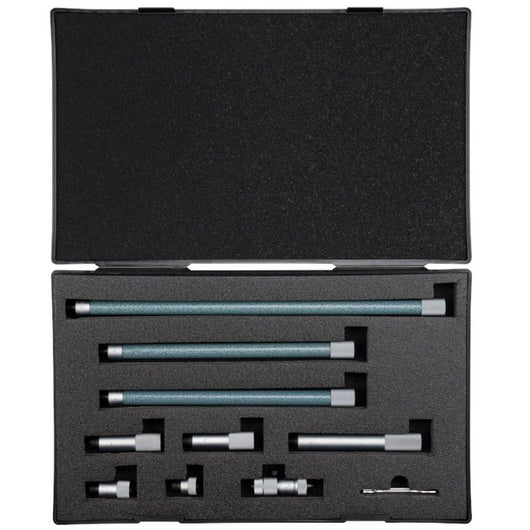

- Supplied in fitted plastic case except 1500mm / 60? comes in a wooden case
- Wide range of ID measurements by combining extension rods (pipes) and anvils with the micrometer head
This is an extension rod type inside micrometer that offers you the following benefits:
- Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
- Carbide measuring faces are available.
Â
Key Specifications
Range:Â 2-40"
Measuring span: 0.5"

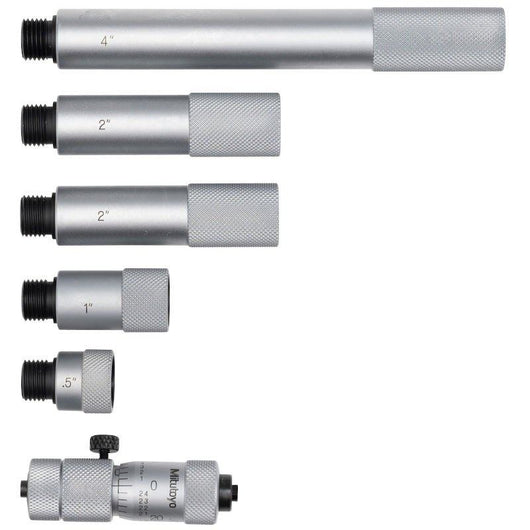

Extension rods: 8 (0.5, 1, 2 (2 pcs.), 4, 8 (2 pcs.), 12")
Mass_ 845 g
Measuring spindle: Spindle pitch 0,025"
Measuring face: Carbide
Measuring method: 2-point
Delivered: Including box, key, extensions, micrometer head
Graduation: 0.001"
Digital/Analog_ Analog
Inch-Metric: Inch
Spindle feed error: 1.5E-4"
