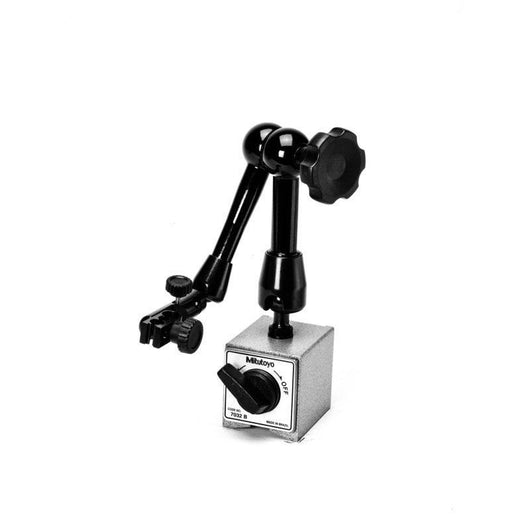

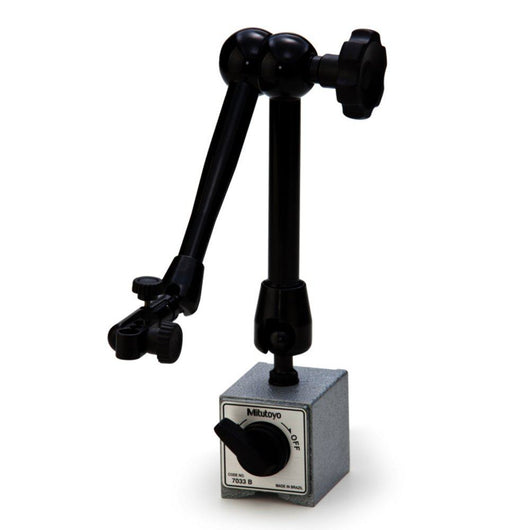

Mitutoyo Universal Joint Magnetic Stand 7033B

Please view the new rendition of this product here MIT-7033-10

This product has been discontinued

• The arm can be manually locked in any position using the knob on the upright
• Useful for holding dial indicators or dial test indicators during alignment operations
• Permanent magnet operation with ON/OFF control
• V-grooved base for secure mounting on cylindrical surfaces
• Ideal for holding lever indicators (DTIs) at any orientation on a machine tool for alignment operations

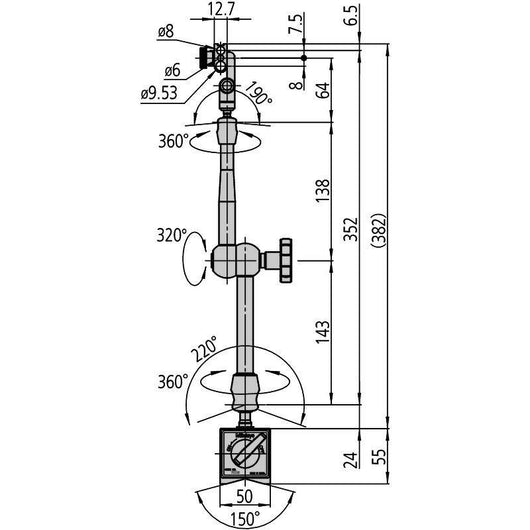

• Key Specifications Stem mounting diameter - 6, 8, 3/8" / 9,53mm
• Dovetail groove - Provided

Universal magnetic stand that uses a switchable permanent magnet for convenient mounting onto flat iron or steel surfaces. The arm can be hydraulically locked in any position using the knob on the upright. Useful for holding dial indicators or dial test indicators during alignment operations. Mitutoyo's Magnetic Stands accept all dial indicators and dial test indicators. The ON-OFF switch offers instant mounting and dismounting without any adverse effect to the indicators or workpiece surface. Overall height is 15 inches and 132 lbs. magnetic pull.
