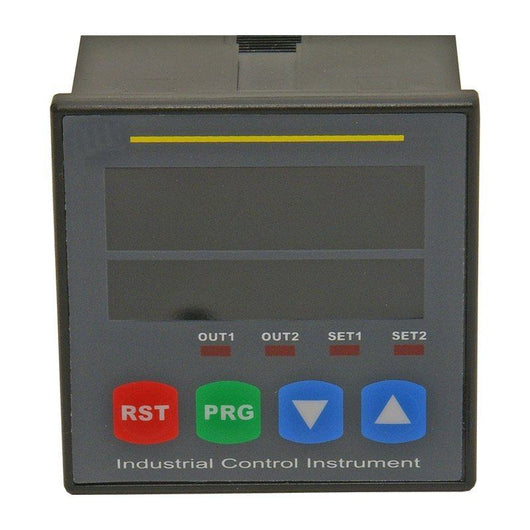

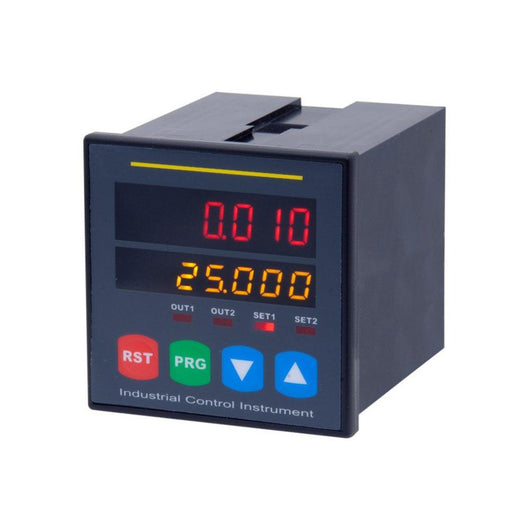

Single Axis Quadrature Display Console with Relay Output

• Our Mini Single Axis Relay Output Console offers a simple display solution for linear measurement. Housed in a very compact and panel mount case
• This console also features two 250V 3A relay outputs that can be triggered when a user preset value is reached

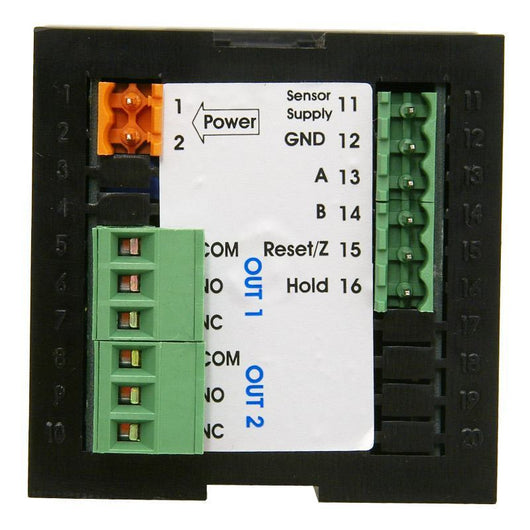

• The linear encoder and external power supply are connected to the rear of the console with only a few basic set up parameters required - these include scale resolution and count direction

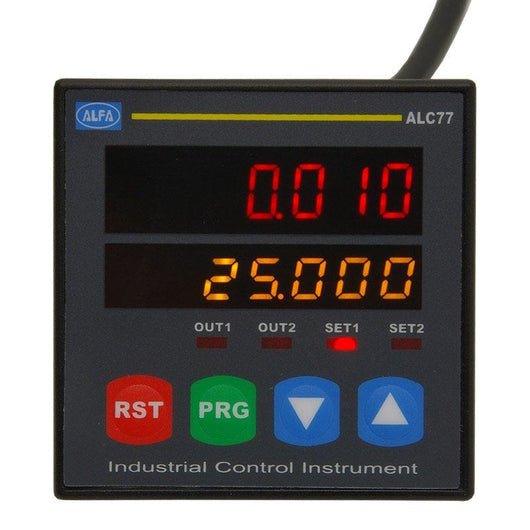

• Easy read 10mm high LED display
• Compatible with our ranges of glass and magnetic linear encoders
• Applications include - auto depth/end stop, automatic machine control, EDM machines and specialist control applications
